Case 110

From Echopedia
Jump to navigation Jump to search
Severe mitral valve stenosis, mitral regurgitation, aortic regurgitation
Courtesy of: AMC Echolab, AMC, The Netherlands
E00617.gif E00618.gif

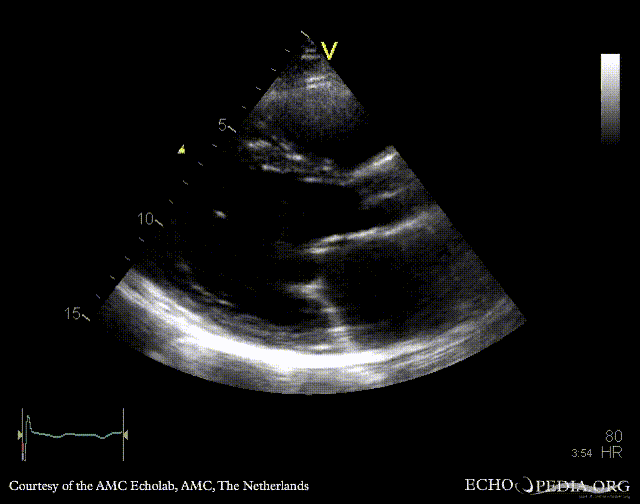

PLAX: dilated left atrium, mitral valve is stenotic, "hockeystick phenomenon" PLAX with Color Doppler: severe mitral valve regurgitation and aortic valve regurgitation
Magnifier.pngenlarge

Ppt logo.pngdownload file to use in your powerpoint presentation

Magnifier.pngenlarge

Ppt logo.pngdownload file to use in your powerpoint presentation

E00619.gif E00620.gif

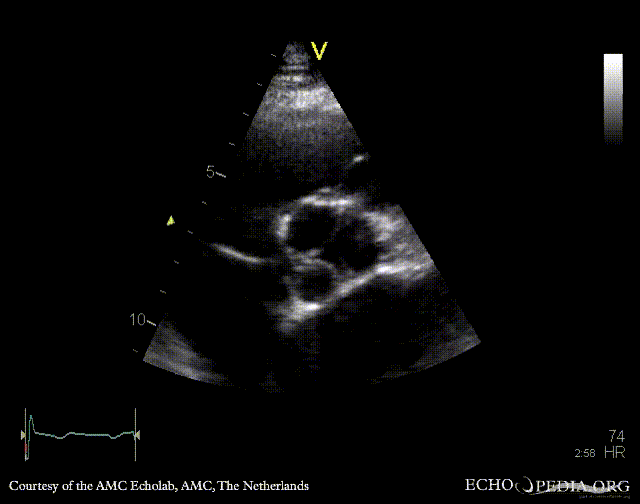

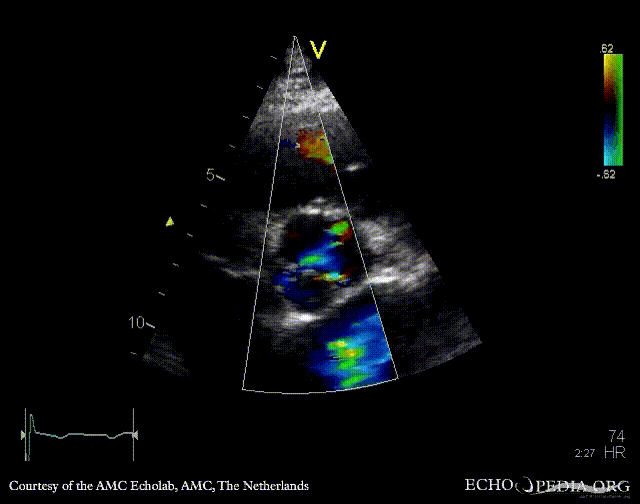

PSAX: thickend aortic valve PLAX with Color Doppler: severe aortic valve regurgitation
Magnifier.pngenlarge

Ppt logo.pngdownload file to use in your powerpoint presentation

Magnifier.pngenlarge

Ppt logo.pngdownload file to use in your powerpoint presentation

E00621.gif E00622.gif

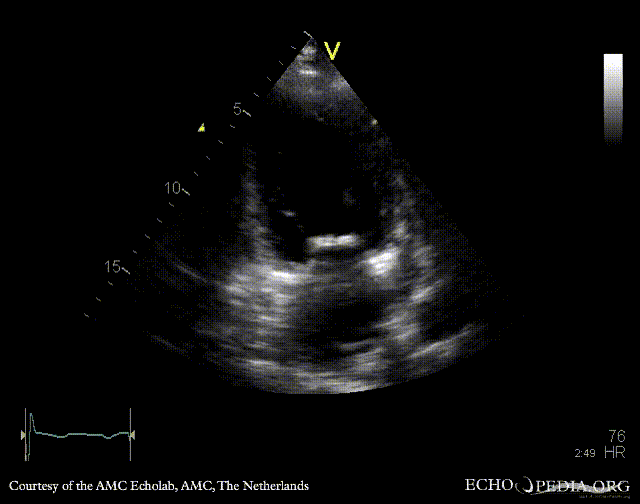

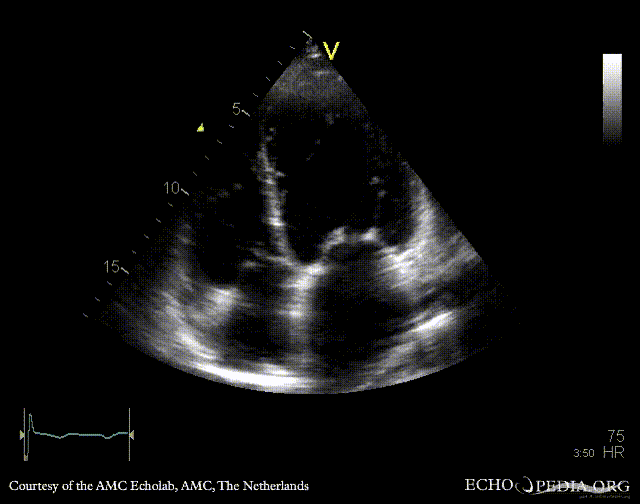

A4CH: enlarged left atrium and left ventricle, mitral valve is stenotic, "hockeystick phenomenon" A2CH
Magnifier.pngenlarge

Ppt logo.pngdownload file to use in your powerpoint presentation

Magnifier.pngenlarge

Ppt logo.pngdownload file to use in your powerpoint presentation

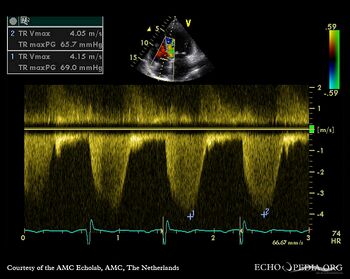

A3CH Continuous-wave Doppler signal of tricuspid regurgitation: pulmonary hypertension
Magnifier.pngenlarge

Ppt logo.pngdownload file to use in your powerpoint presentation

E00625.gif E00626.gif

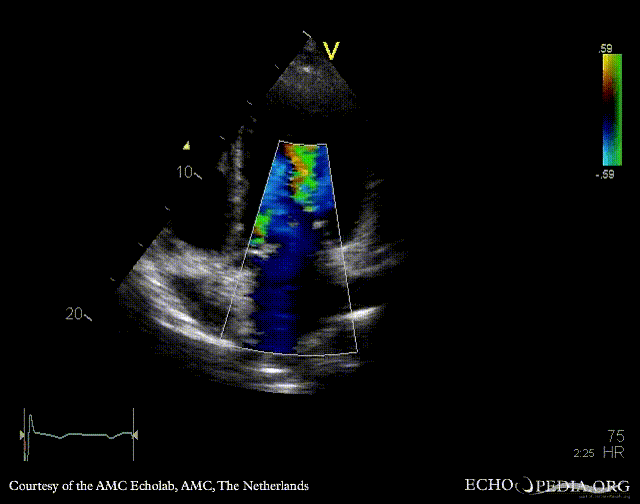

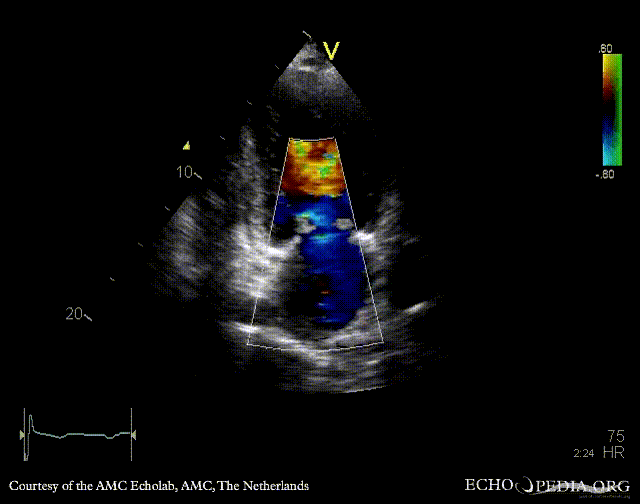

A4CH with Color Doppler: severe mitral regurgitation A2CH
