Severe aortic valve stenosis
Courtesy of: AMC Echolab, AMC, The Netherlands
E00259.gif E00260.gif

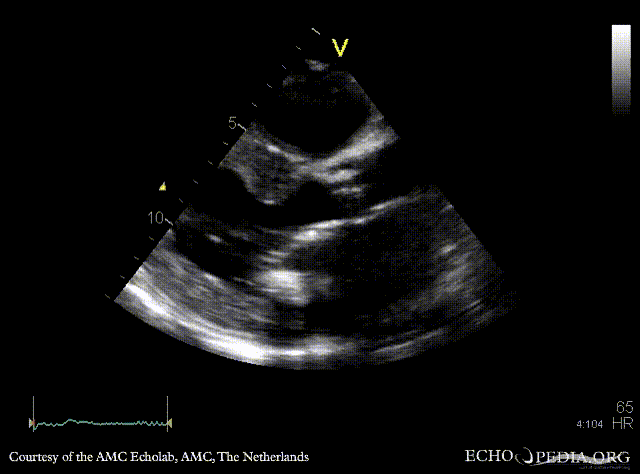

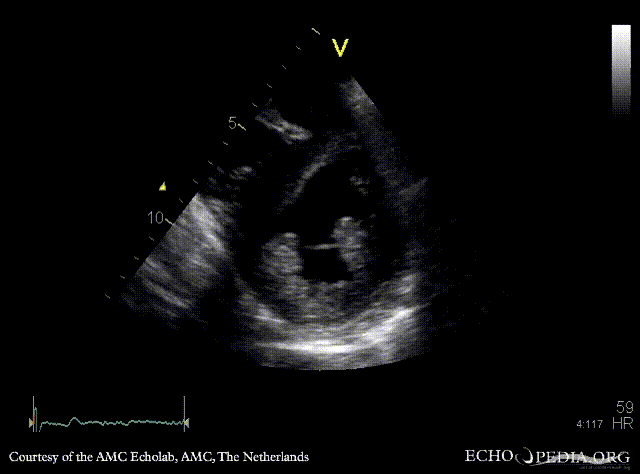

PLAX: concentric left ventricle hyperthrophy, thickend aortic valve PSAX: concentric left ventricle hyperthrophy
Magnifier.pngenlarge

Ppt logo.pngdownload file to use in your powerpoint presentation

Magnifier.pngenlarge

Ppt logo.pngdownload file to use in your powerpoint presentation

E00261.gif E00262.gif

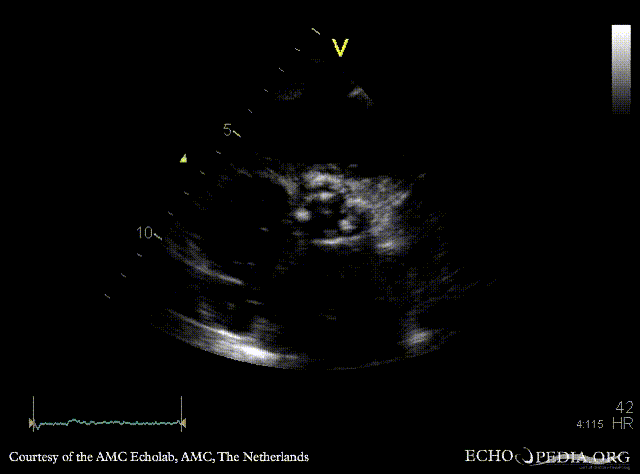

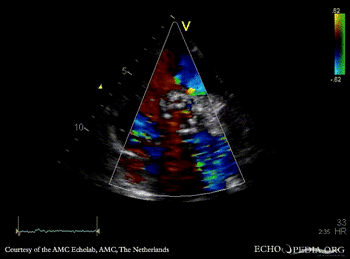

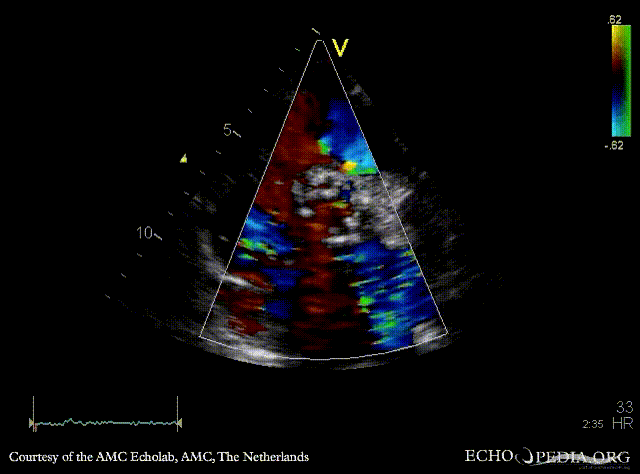

PSAX: stenotic aortic valve PSAX: stenotic aortic valve, mild aortic regurgitation
Magnifier.pngenlarge

Ppt logo.pngdownload file to use in your powerpoint presentation

Magnifier.pngenlarge

Ppt logo.pngdownload file to use in your powerpoint presentation

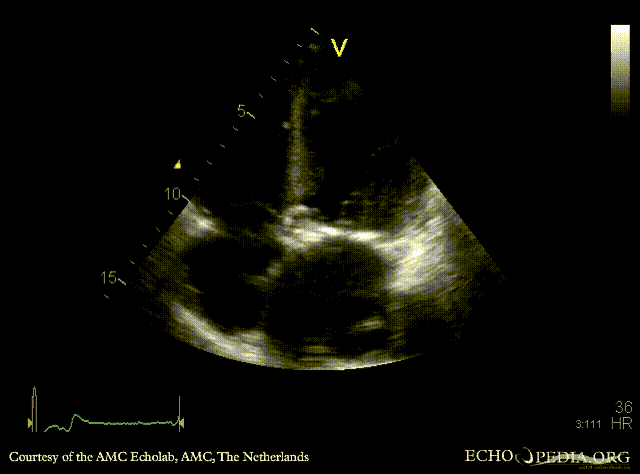

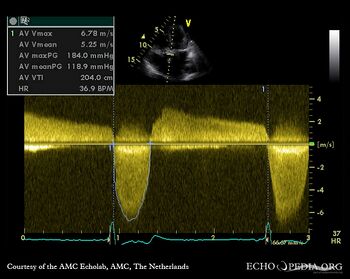

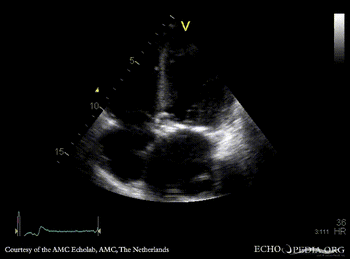

A5CH: severe aortic valve stenosis Continuous-wave Doppler signal of severe aortic valve stenosis, peak gradient 184 mmHg
Magnifier.pngenlarge

Ppt logo.pngdownload file to use in your powerpoint presentation

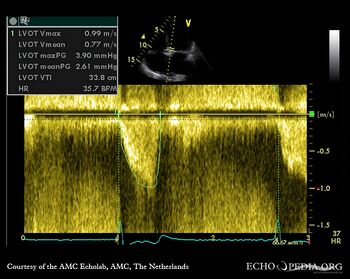

Pulsed-wave Doppler signal: LVOT flow
