Severe mitral valve stenosis
Courtesy of: AMC Echolab, AMC, The Netherlands

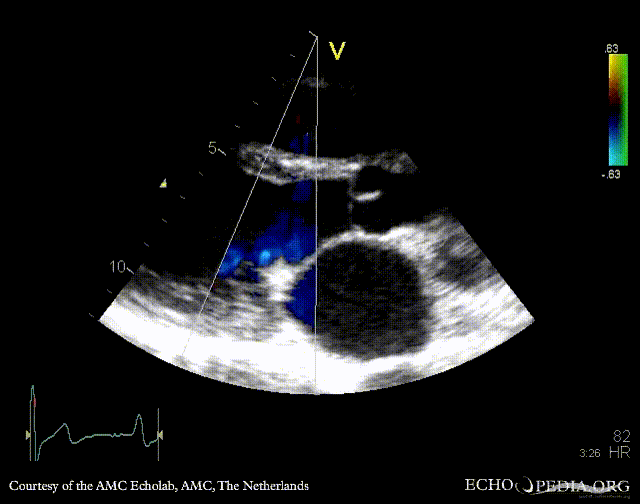

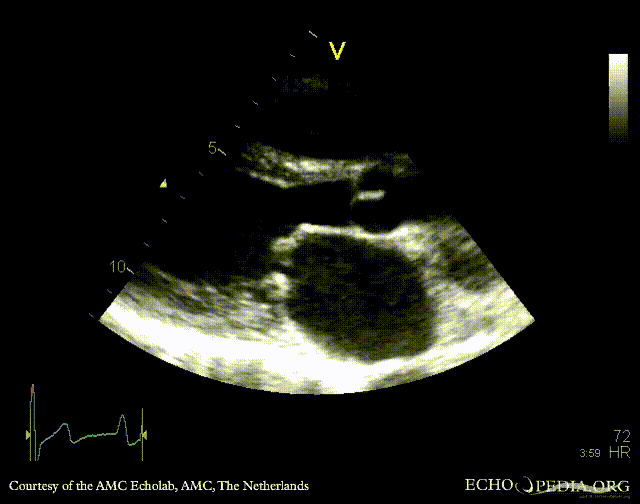

PLAX: dilated left atrium, mitral valve is stenotic, "hockeystick phenomenon" PLAX with Color Doppler: mild mitral regurgitation
Magnifier.pngenlarge

Ppt logo.pngdownload file to use in your powerpoint presentation

Magnifier.pngenlarge

Ppt logo.pngdownload file to use in your powerpoint presentation

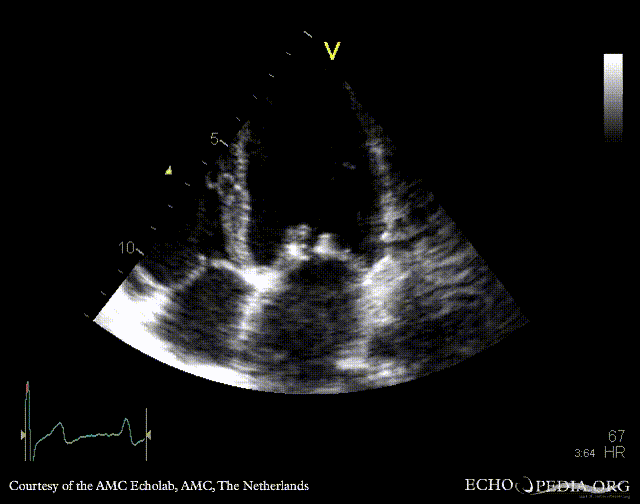

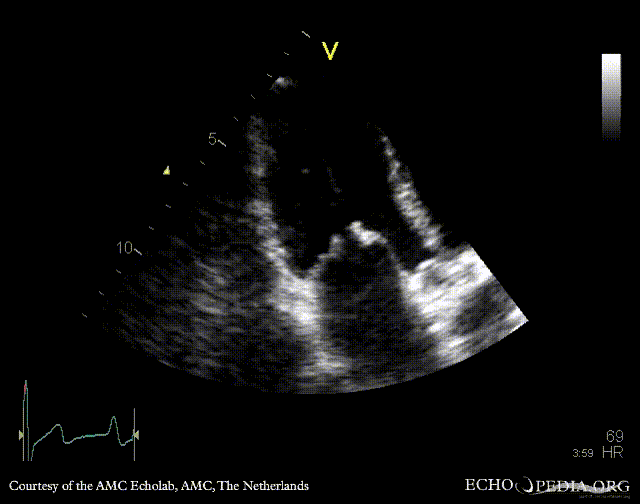

A4CH A3CH
Magnifier.pngenlarge

Ppt logo.pngdownload file to use in your powerpoint presentation

Magnifier.pngenlarge

Ppt logo.pngdownload file to use in your powerpoint presentation

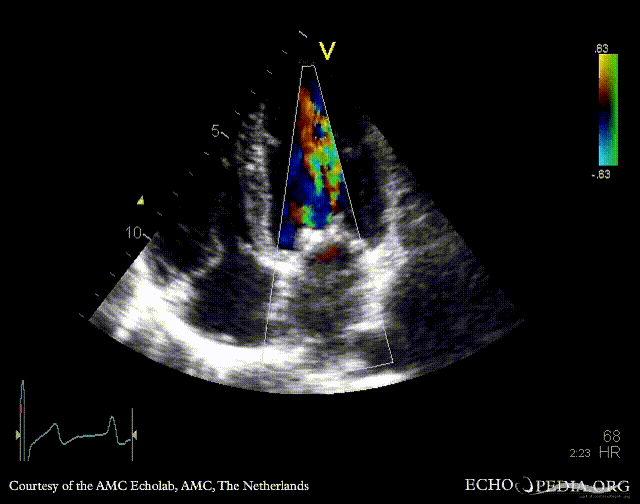

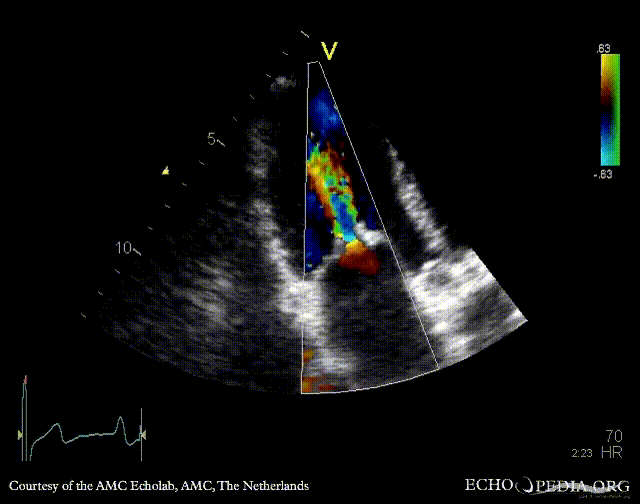

A3CH with Color Doppler: high velocity mitral inflow A4CH with Color Doppler: high velocity mitral inflow
Magnifier.pngenlarge

Ppt logo.pngdownload file to use in your powerpoint presentation

Magnifier.pngenlarge

Ppt logo.pngdownload file to use in your powerpoint presentation

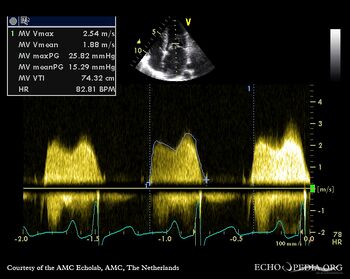

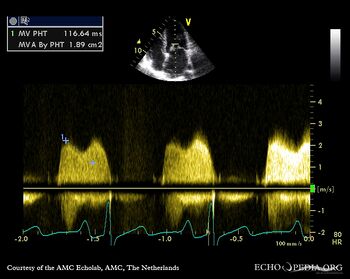

Continuous-wave Doppler signal of transmitral flow Continuous-wave Doppler signal of transmitral flow: PHT 117 msec

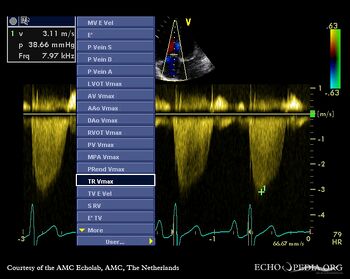

Continuous-wave Doppler signal of tricuspid regurgitation: pulmonary hypertension
