Case 29

From Echopedia
Jump to navigation Jump to search
Dilated aortic root and aortic regurgitation
Courtesy of: AMC Echolab, AMC, The Netherlands

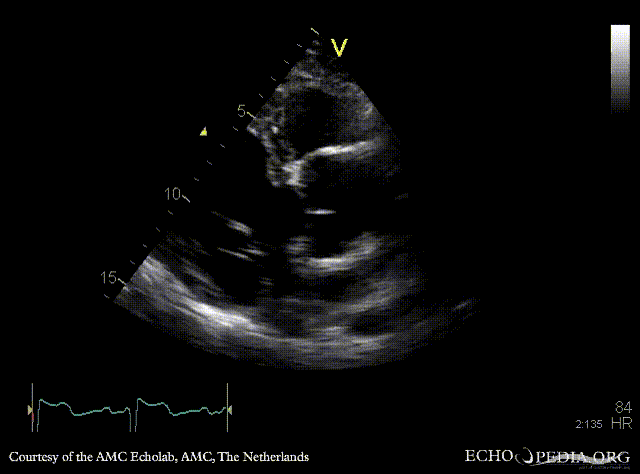

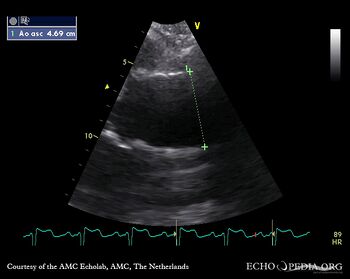

PLAX: dilated aortic root PLAX: dilated ascending aorta
Magnifier.pngenlarge

Ppt logo.pngdownload file to use in your powerpoint presentation

E00238.gif E00239.gif

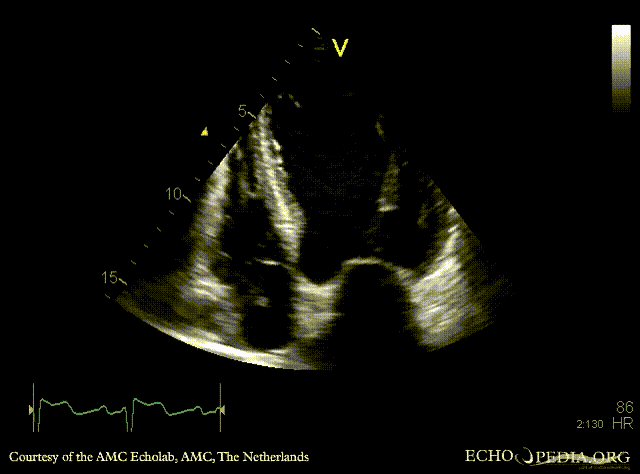

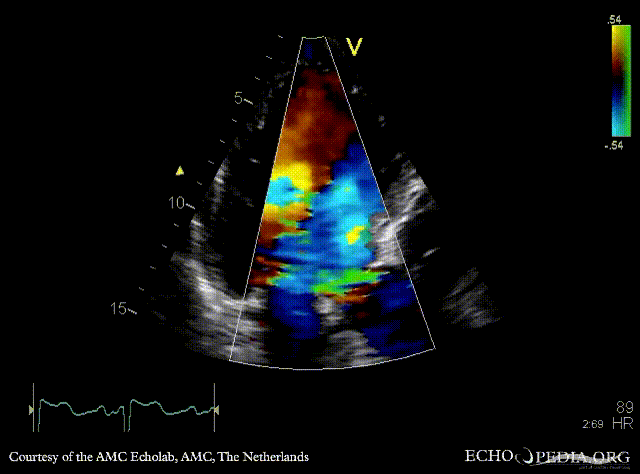

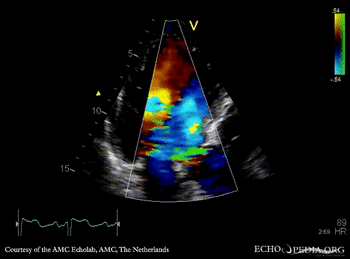

A4CH: dilated left ventricle, false tendon in the apex and Chiari network in the right atrium A3CH: Color Doppler, severe aortic regurgitation, eccentric jet
Magnifier.pngenlarge

Ppt logo.pngdownload file to use in your powerpoint presentation

Magnifier.pngenlarge

Ppt logo.pngdownload file to use in your powerpoint presentation

E00240.gif E00241.gif

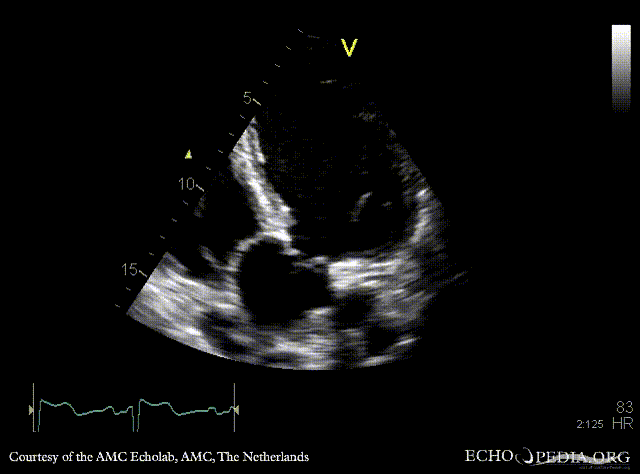

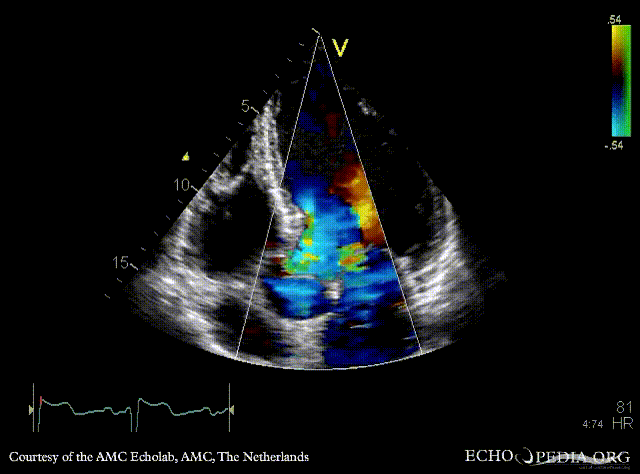

A5CH: Color Doppler, severe aortic regurgitation, eccentric jet A5CH: dilated aortic root
Magnifier.pngenlarge

Ppt logo.pngdownload file to use in your powerpoint presentation

Magnifier.pngenlarge

Ppt logo.pngdownload file to use in your powerpoint presentation

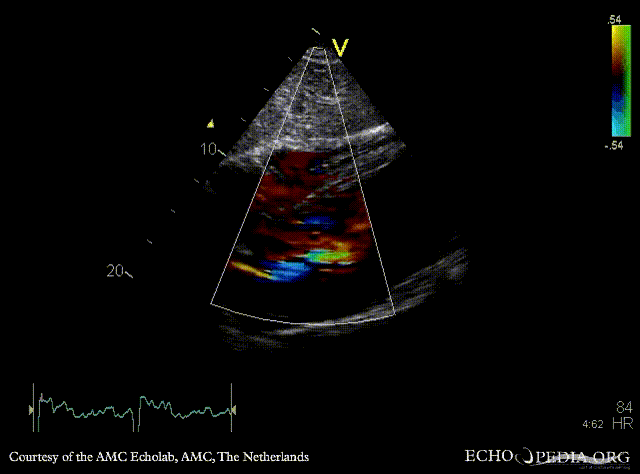

Subcostal view: severe aortic regurgitation, eccentric jet
