Standard Imaging Planes

Imaging of the heart by means of ultrasound is limited by thoracic anatomy. Ultrasound waveforms do not propogate well through air and because of this imaging of the heart is limited to several so-called 'acoustic windows'. These windows are left parasternal, apical, subcostal, suprasternal and right parasternal. Because of the properties of ultrasound, intrathoracic fluid (for instance pleural or pericardial effusion) makes imaging easier but more intrathoracic air (COPD) makes imaging more difficult.

Parasternal Imaging Planes

The left parasternal imaging planes are found by placing the transducer in the third or fourth intercostal space on the left of the sternum. Some instances, such as large hyperplastic lungs in patients with chronic obstructive pulmonary disorder (COPD), may force the sonographer to image the heart from a lower position on the chest wall. There are four parasternal imaging planes:

  • parasternal long axis (PSLAX)
     -right ventricular inflow view (RVIT)
  • parasternal short axis planes (PSAX)
     -apical level (PSAX-Apical)
     -papillary level (PSAX-LV)
     -mitral valve level (PSAX-MV)
     -aortic valve level (PSAX-AO)

Left parasternal long axis

Image showing the left parasternal long axis transection (PSLAX) of the heart by the ultrasound waves
<flash>file=PSLAX.swf
A parasternal long axis
Magnifier.pngenlarge

Ppt logo.pngdownload avi file to use in your powerpoint presentation


Left parasternal short axis

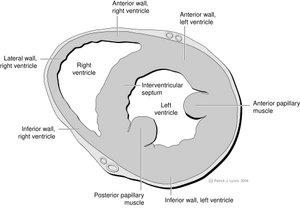

Image showing the left parasternal short axis transection (SAX) of the heart and the different structures


Apical Imaging Planes

There are four apical imaging planes. these are made by placing the transducer on the ictus cordis and thus getting a four chamber view. By rotating the transducer counter clockwise, the two and three chaber views respectively are seen.

  • Apical four chamber view
  • Apical five chamber view
  • Apical three chamber view
  • Apical two chamber view
