Case 1

A 46 year old male diagnosed with Kahler's disease, complains of fast progressive dyspnea. Physical examination reveals tachcardia (140 beats per minute). Upon measuring his blood pressure the nurse notices a pulsus paradoxus of 30 mm Mercury. Further examination shows decreased lung sounds on the right and dampened percussion on his back on both sides.

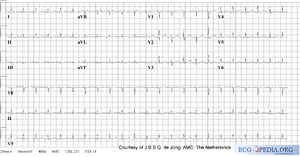

You see the ECG which shows a tachcardia and a pulsus alternans, typical for pericarditis

ECG of a patient with pericarditis carcinomatosa and tamponade

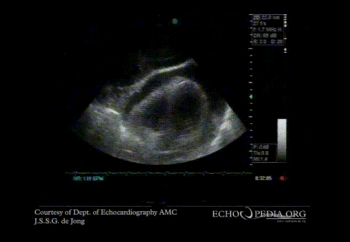

The apical 4 chamber echocardiogram shows severe pericardial effusion and a swinging heart.

An apical 4 chamber view of a swinging heart
Magnifier.pngenlarge

Ppt logo.pngdownload avi file to use in your powerpoint presentation


Continue to Case 2
