Ventricular septum defect with right to left shunt
Courtesy of: AMC Echolab, AMC, The Netherlands

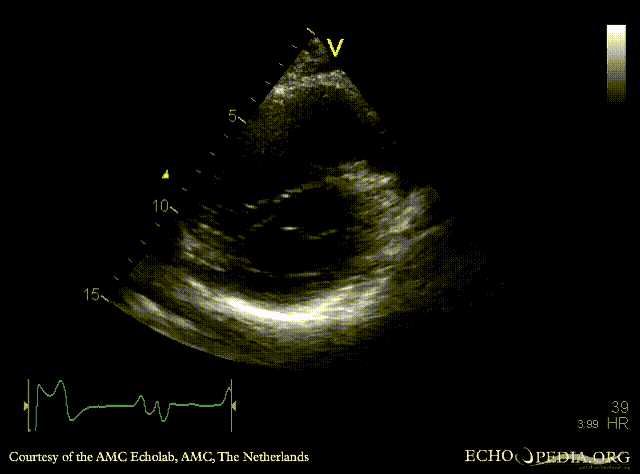

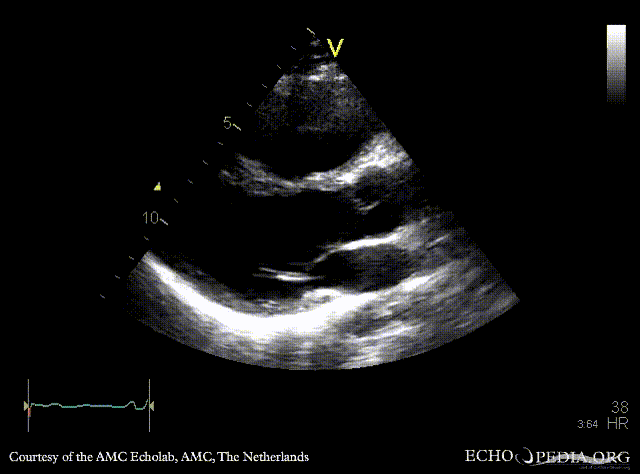

PLAX: large perimembraneous ventricular septum defect PSAX: dilated right ventricle, flattening of interventricular septum
Magnifier.pngenlarge

Ppt logo.pngdownload file to use in your powerpoint presentation

Magnifier.pngenlarge

Ppt logo.pngdownload file to use in your powerpoint presentation

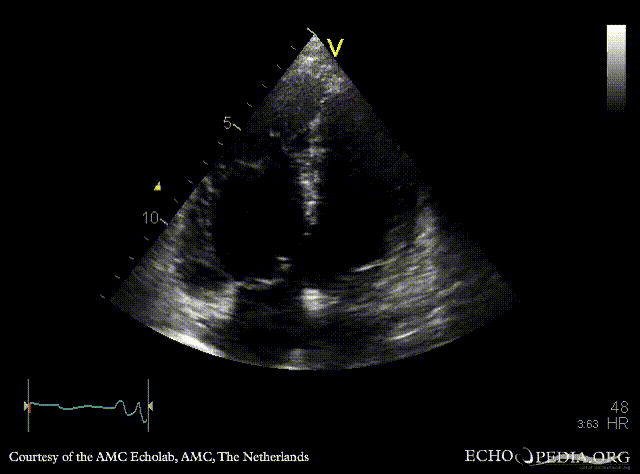

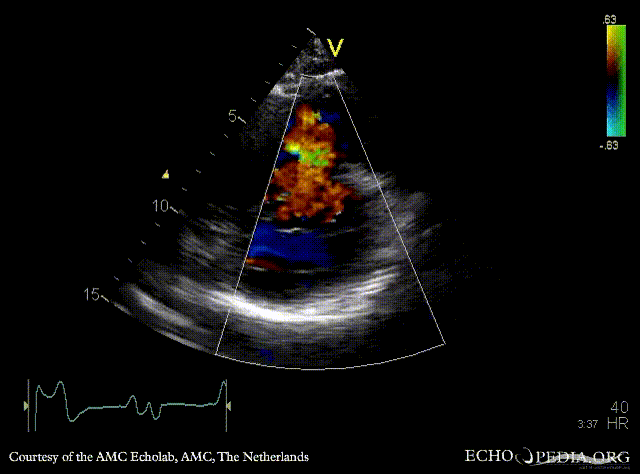

PSAX with Color Doppler: right to left shunt (syndrome of Eisenmenger) A4CH: dilated right ventricle, poor function, VSD
Magnifier.pngenlarge

Ppt logo.pngdownload file to use in your powerpoint presentation

Magnifier.pngenlarge

Ppt logo.pngdownload file to use in your powerpoint presentation

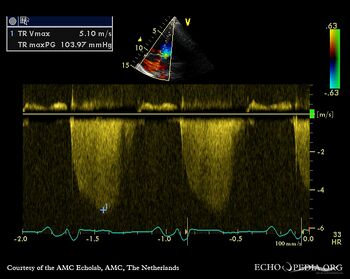

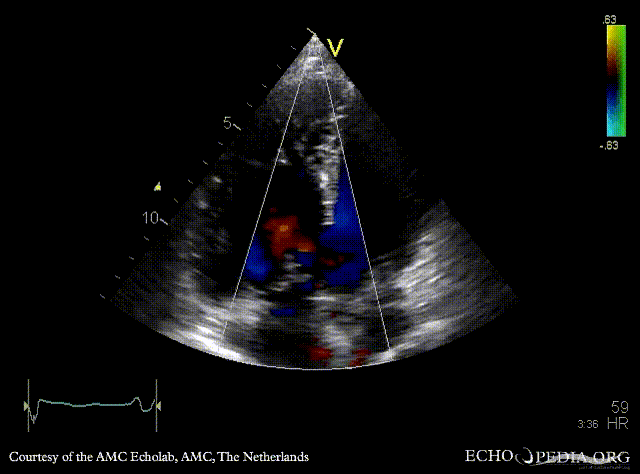

A4CH with Color Doppler: right to left shunt Continuous-wave Doppler signal of tricuspid regurgitation: severe pulmonary hypertension
