Case 78

From ECHOpedia
Jump to: navigation, search
Severe aortic, mitral, tricuspid en pulmonary valve regurgitaiton
Courtesy of: AMC Echolab, AMC, The Netherlands

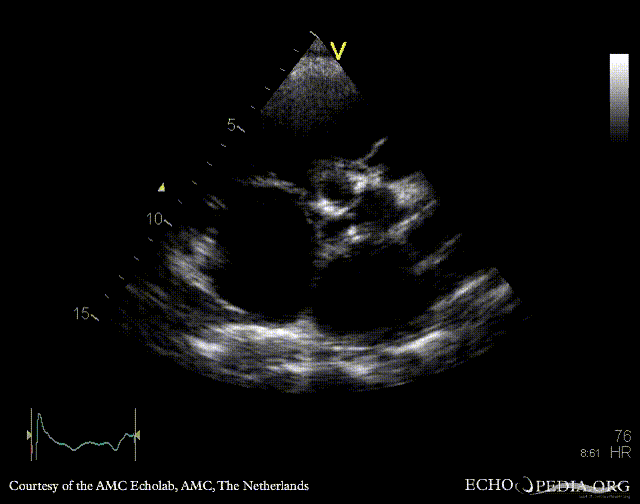

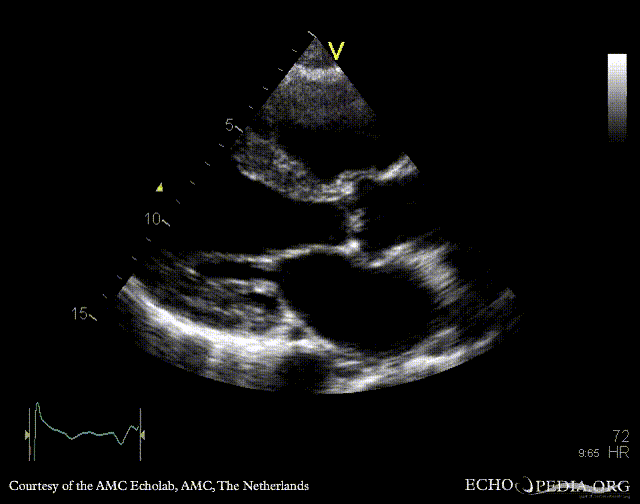

PLAX: thickend aortic valve and mitral valve PSAX: flattening of IAS, enlarged right ventricle
Magnifier.pngenlarge

Ppt logo.pngdownload file to use in your powerpoint presentation

Magnifier.pngenlarge

Ppt logo.pngdownload file to use in your powerpoint presentation

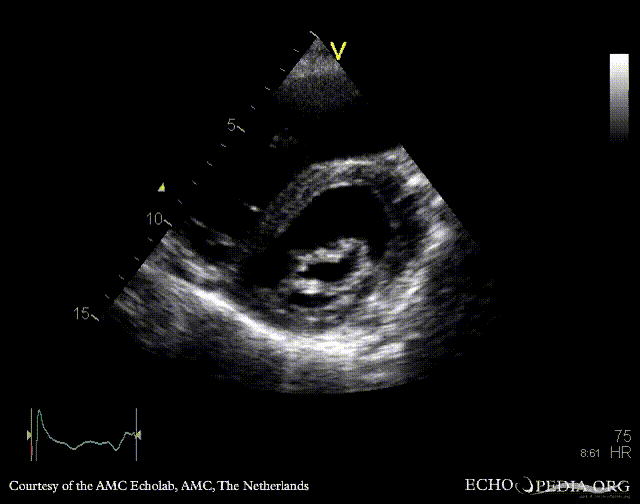

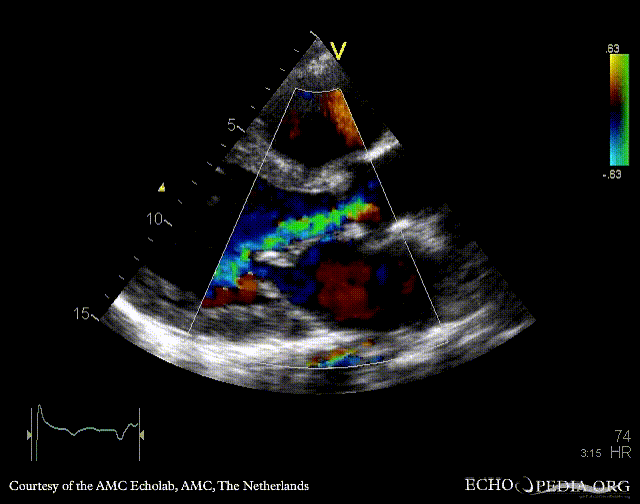

PSAX: thickend aortic valve PLAX: severe aortic and mitral regurgitation
Magnifier.pngenlarge

Ppt logo.pngdownload file to use in your powerpoint presentation

Magnifier.pngenlarge

Ppt logo.pngdownload file to use in your powerpoint presentation

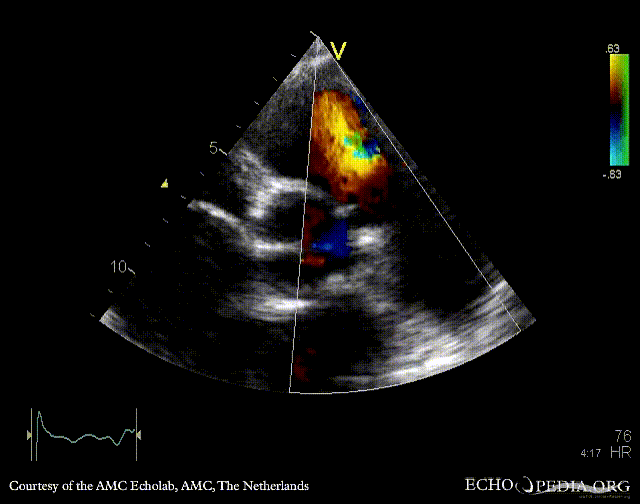

PSAX: severe pulmonary regurgitation Continuous-wave signal of severe pulmonary regurgitation
Magnifier.pngenlarge

Ppt logo.pngdownload file to use in your powerpoint presentation

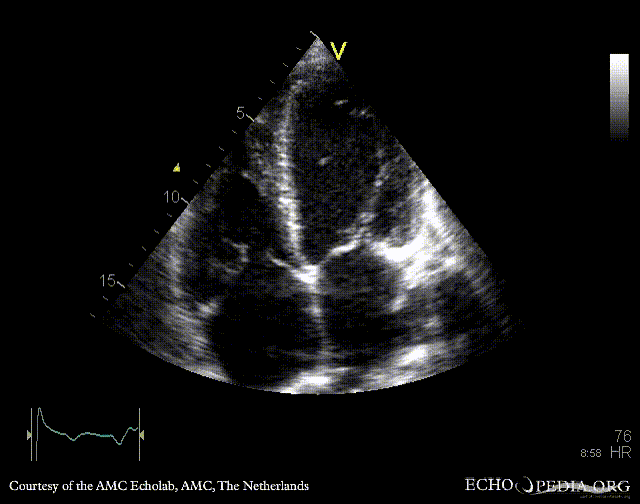

A4CH: enlarged atria and ventricles A3CH: severe aortic and mitral regurgitation
Magnifier.pngenlarge

Ppt logo.pngdownload file to use in your powerpoint presentation

Magnifier.pngenlarge

Ppt logo.pngdownload file to use in your powerpoint presentation

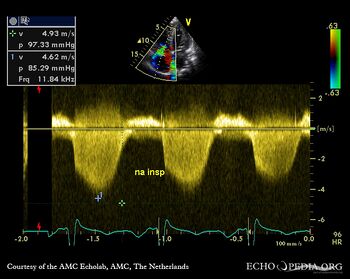

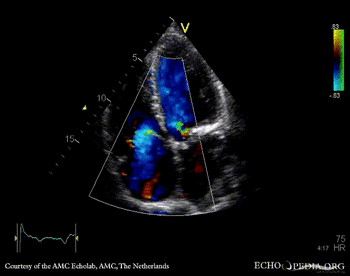

A4CH: Color Doppler, severe tricuspid regurgitation Continuous-wave signal of tricuspid regurgitation, increased systolic pulmonary artery pressure
